Day 22 Missing values

22.1 Announcements

• Homework 6 – some discussions

22.2 Missing data

• A meme
• Missing response vs. missing predictor
• Sources of uncertainty

Types of missing data

• Data missing completely at random (MCAR)
  • no additional assumptions
• Data missing not at random
  • certain values of outcomes or predictors are more likely to induce missingness

Types of imputation

Overall logic

“[I]nformation flows (…) from present data to missing data, as long as we are willing to make a model of the whole variable” McElreath, Statistical Rethinking.

• Multiple imputation
• Bayesian imputation

22.2.1 Bayesian imputation - MCAR Example

The data below come from a typical problem in agronomy/crop science: scientists wish to study the realtionship between Nitrogen content (N%) and biomass (W). Generally speaking, scientists consider a power function \[N_{i} = \alpha \cdot W_i^\beta,\] where:

• \(N_i\) is the N content of the \(i\)th sample,
• \(\alpha\) is the scale parameter of the power function,
• \(W_i\) is the biomass of the \(i\)th sample, and
• \(\beta\) is the shape parameter of the power curve.

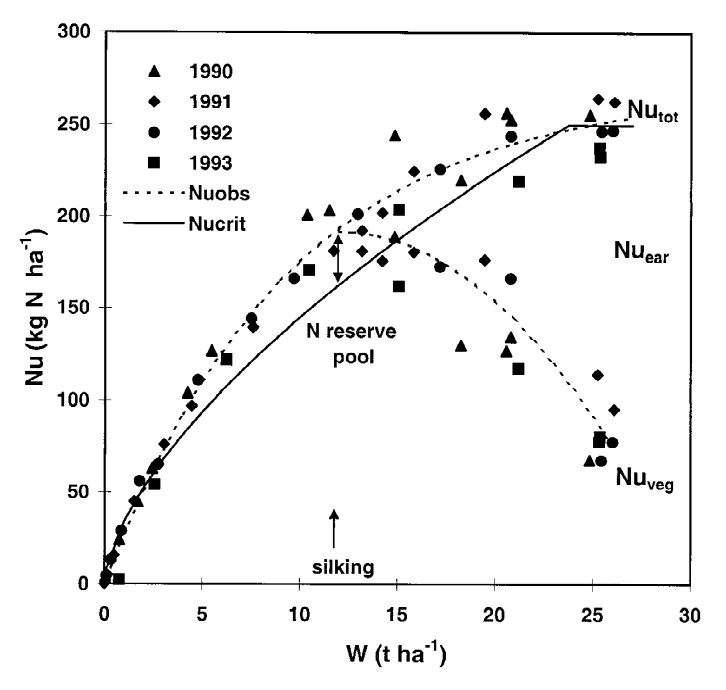

Figure 22.1: Relationships between N uptake by aerial biomass and aerial biomass accumulation (W) in maize crops. Figure 6 in Plenet and Lemaire (2000).

A couple questions:

• Is this a statistical model?
• How can we make this a statistical model?

22.2.1.1 Applied example

library(tidyverse)
url <- "https://raw.githubusercontent.com/stat870/fall2025/refs/heads/main/data/N_W.csv"
df <- read.csv(url)

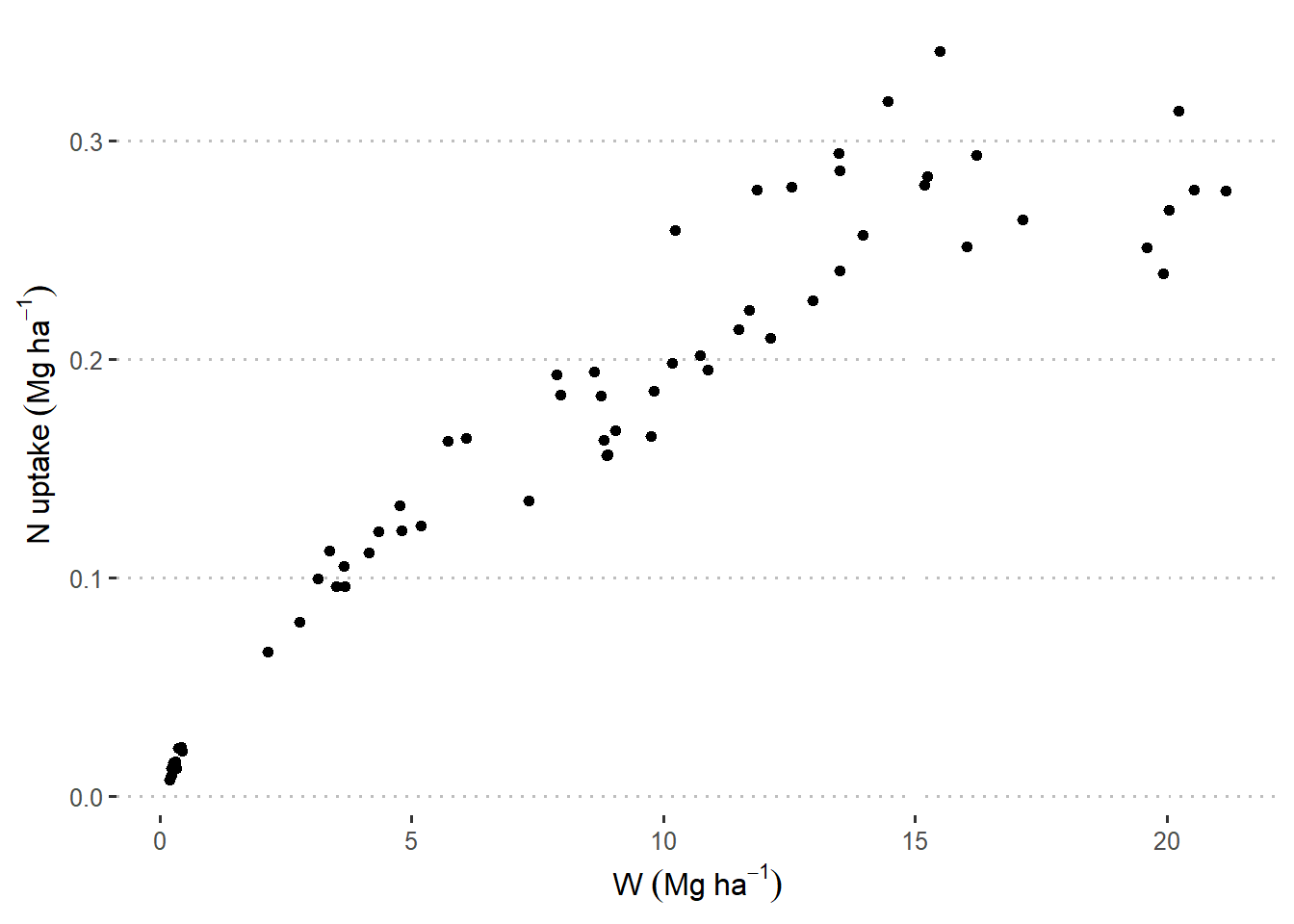

df |>
  ggplot(aes(W_ton_ha, Nupt_kg_ha))+
  geom_point(aes())+
  theme_pubclean()+
  labs(
    x = expression(W~(Mg~ha^{-1})),
    y = expression(N~uptake~(Mg~ha^{-1}))
  )

df |>
  filter(is.na(W_ton_ha))

##               Sites Genotype Rep Nrates_kg_ha W_ton_ha Nupt_kg_ha
## 1 PPAC, Wanatah, IN    2M750   2          224       NA   0.011368
## 2 PPAC, Wanatah, IN    2M750   3          224       NA   0.106960
## 3 PPAC, Wanatah, IN    2T789   2          224       NA   0.116508
## 4 PPAC, Wanatah, IN    2M750   1          224       NA   0.142486
## 5 PPAC, Wanatah, IN    2M750   1          224       NA   0.192324
## 6 PPAC, Wanatah, IN    2T789   3          224       NA   0.267631
## 7 PPAC, Wanatah, IN    2T789   1          224       NA   0.279180
## 8 PPAC, Wanatah, IN    2M750   2          224       NA   0.289454
## 9 PPAC, Wanatah, IN    2M750   2          224       NA   0.254864
##   Sampling_time
## 1            t1
## 2            t2
## 3            t2
## 4            t3
## 5            t4
## 6            t5
## 7            t5
## 8            t6
## 9            t6

library(cmdstanr)
library(bayesplot)
library(ggpubr)

BI_model <- cmdstan_model("../scripts/missing_data.stan")

BI_model$print()

## data {
##   int<lower=0> N;
##   int<lower=0> W_num_missing;
##   vector[N] W;
##   vector[N] y;
##   array[N] int W_missing;
## }
##
## parameters {
##   real alpha;
##   real beta;
##   real<lower=0> sigma;
##   vector[W_num_missing] W_impute;
##   real mu_W;
##   real<lower=0> sigma_W;
## }
##
## model {
##   vector[N] W_merged;
##   alpha ~ normal(50, 10);
##   beta ~ normal(1, 2);
##   sigma ~ gamma(10,2);
##
##   mu_W ~ normal(10, 6);
##   sigma_W ~ gamma(4, 1);
##
##
##   for (i in 1:N) {
##     W_merged[i] = W[i];
##     if ( W_missing[i] > 0 ) W_merged[i] = W_impute[W_missing[i]];
##     }
##     // imputation
##     W_merged ~ normal(mu_W, sigma_W);
##     for (i in 1:N){
##       y[i] ~ normal(alpha * W_merged[i]^beta, sigma);
##       }
## }

W_missing <- as.numeric(is.na(df$W_ton_ha))
W_missing <- sapply(1:length(W_missing),
                    function(n) W_missing[n]*sum(W_missing[1:n]) )
W_missing

##  [1] 0 0 0 0 0 0 0 1 0 0 0 0 0 0 2 0 0 0 0 0 0 0 3 0 0 0 0 0 0 0 4 0 0
## [34] 0 0 0 0 0 0 0 0 0 5 0 0 0 0 0 0 0 0 0 0 6 0 0 0 7 0 0 0 8 0 0 0 0
## [67] 0 9 0 0 0 0

stan_data <- list(
  N = nrow(df),
  W_num_missing = sum(is.na(df$W_ton_ha)),
  W =  replace_na(df$W_ton_ha, 0),
  y = df$Nupt_kg_ha,
  W_missing = W_missing)

samples <- BI_model$sample(
  data = stan_data,
  seed = 33,
  chains = 3,
  cores = 3,
  iter_warmup = 1500,
  iter_sampling = 1000
)

## Running MCMC with 3 parallel chains...

## Chain 3 Iteration:    1 / 2500 [  0%]  (Warmup)

## Chain 3 Iteration:  100 / 2500 [  4%]  (Warmup)
## Chain 3 Iteration:  200 / 2500 [  8%]  (Warmup)

## Chain 3 Iteration:  300 / 2500 [ 12%]  (Warmup)
## Chain 3 Iteration:  400 / 2500 [ 16%]  (Warmup)
## Chain 3 Iteration:  500 / 2500 [ 20%]  (Warmup)
## Chain 3 Iteration:  600 / 2500 [ 24%]  (Warmup)

## Chain 3 Iteration:  700 / 2500 [ 28%]  (Warmup)

## Chain 3 Iteration:  800 / 2500 [ 32%]  (Warmup)

## Chain 3 Iteration:  900 / 2500 [ 36%]  (Warmup)
## Chain 3 Iteration: 1000 / 2500 [ 40%]  (Warmup)
## Chain 3 Iteration: 1100 / 2500 [ 44%]  (Warmup)
## Chain 3 Iteration: 1200 / 2500 [ 48%]  (Warmup)

## Chain 3 Iteration: 1300 / 2500 [ 52%]  (Warmup)

## Chain 3 Iteration: 1400 / 2500 [ 56%]  (Warmup)
## Chain 3 Iteration: 1500 / 2500 [ 60%]  (Warmup)
## Chain 3 Iteration: 1501 / 2500 [ 60%]  (Sampling)
## Chain 3 Iteration: 1600 / 2500 [ 64%]  (Sampling)

## Chain 3 Iteration: 1700 / 2500 [ 68%]  (Sampling)

## Chain 3 Iteration: 1800 / 2500 [ 72%]  (Sampling)

## Chain 3 Iteration: 1900 / 2500 [ 76%]  (Sampling)
## Chain 3 Iteration: 2000 / 2500 [ 80%]  (Sampling)

## Chain 3 Iteration: 2100 / 2500 [ 84%]  (Sampling)

## Chain 3 Iteration: 2200 / 2500 [ 88%]  (Sampling)
## Chain 3 Iteration: 2300 / 2500 [ 92%]  (Sampling)

## Chain 3 Iteration: 2400 / 2500 [ 96%]  (Sampling)

## Chain 3 Iteration: 2500 / 2500 [100%]  (Sampling)
## Chain 3 finished in 6.5 seconds.
## The remaining chains had a mean execution time of 7.0 seconds.

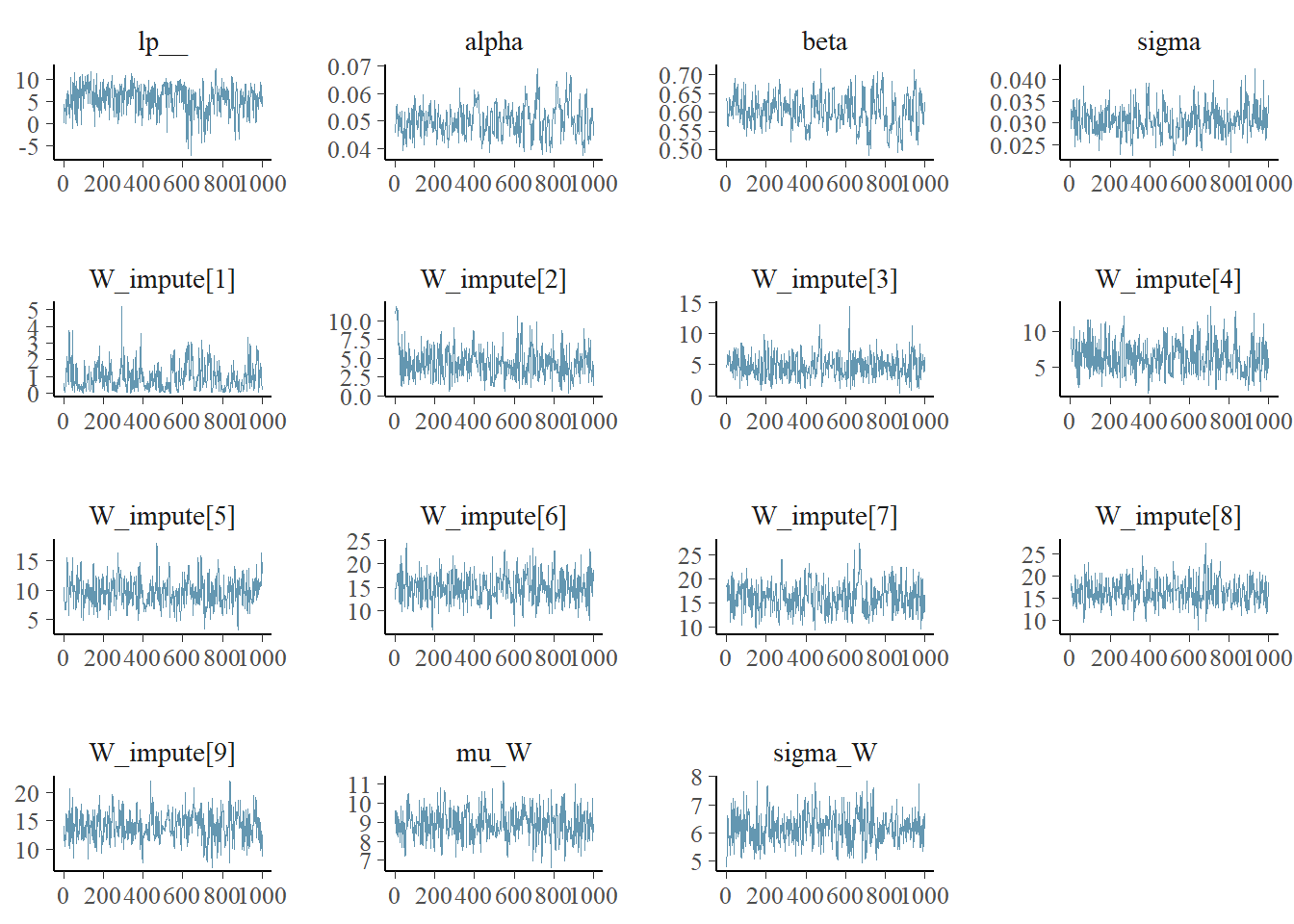

mcmc_trace(samples$draws())

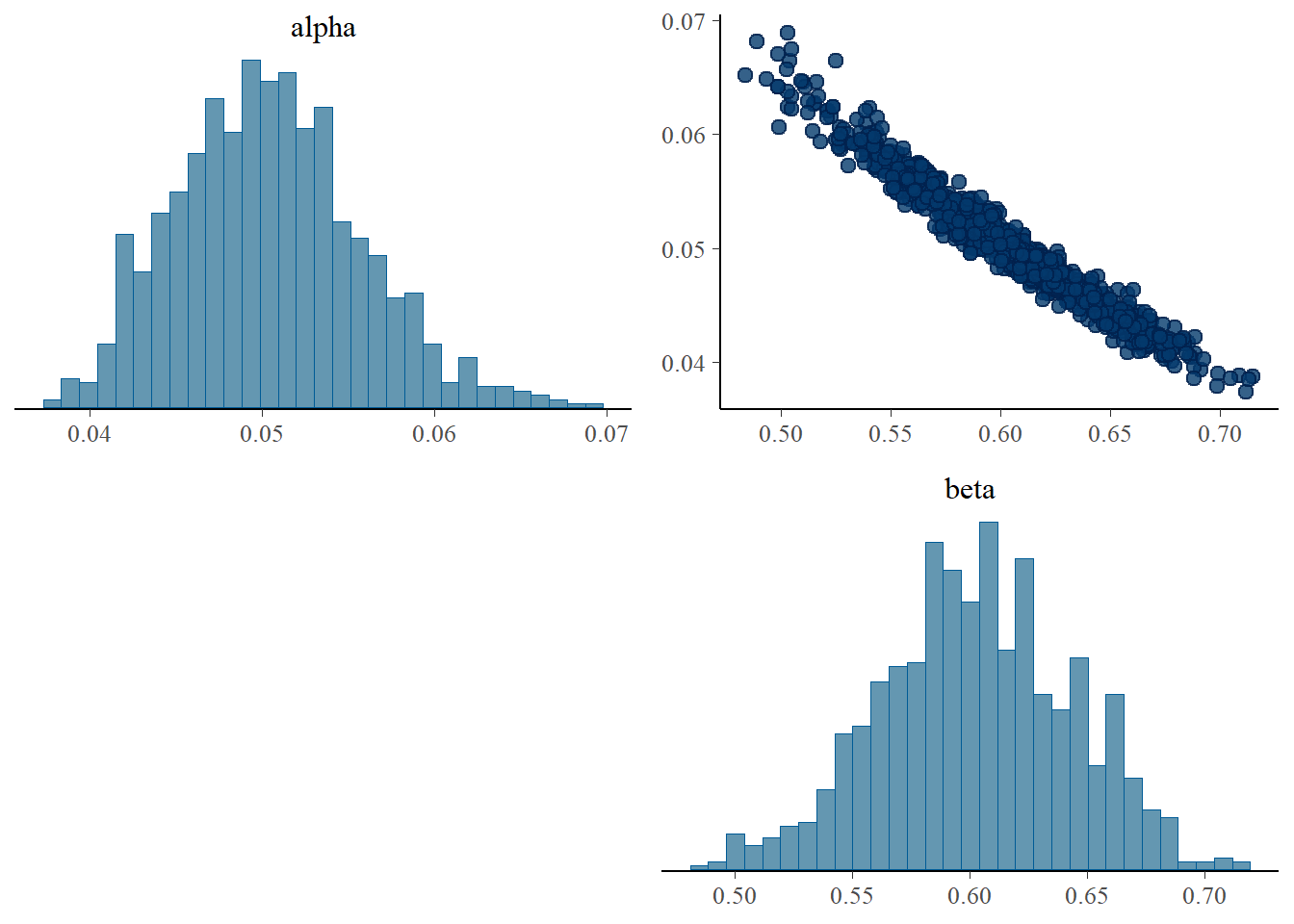

mcmc_pairs(samples$draws(c("alpha", "beta")))

fitted <- samples$summary(c("alpha", "beta"))
W_imputed <- samples$summary() |>
  filter(str_detect(variable, "W_impute"))

W_imputed_mean <- c(NA,W_imputed$mean)
W_imputed_sd <- c(NA,W_imputed$sd)

merged_data <- data.frame(
  W_ton_ha =  df$W_ton_ha, y = df$Nupt_kg_ha, W_missing_id = factor(W_missing)) |>
  mutate(W_merged =
           ifelse(is.na(W_ton_ha),
                  W_imputed_mean[W_missing_id],
                  W_ton_ha),
         W_sd =
           ifelse(is.na(W_ton_ha),
                  W_imputed_sd[W_missing_id],
                  NA))

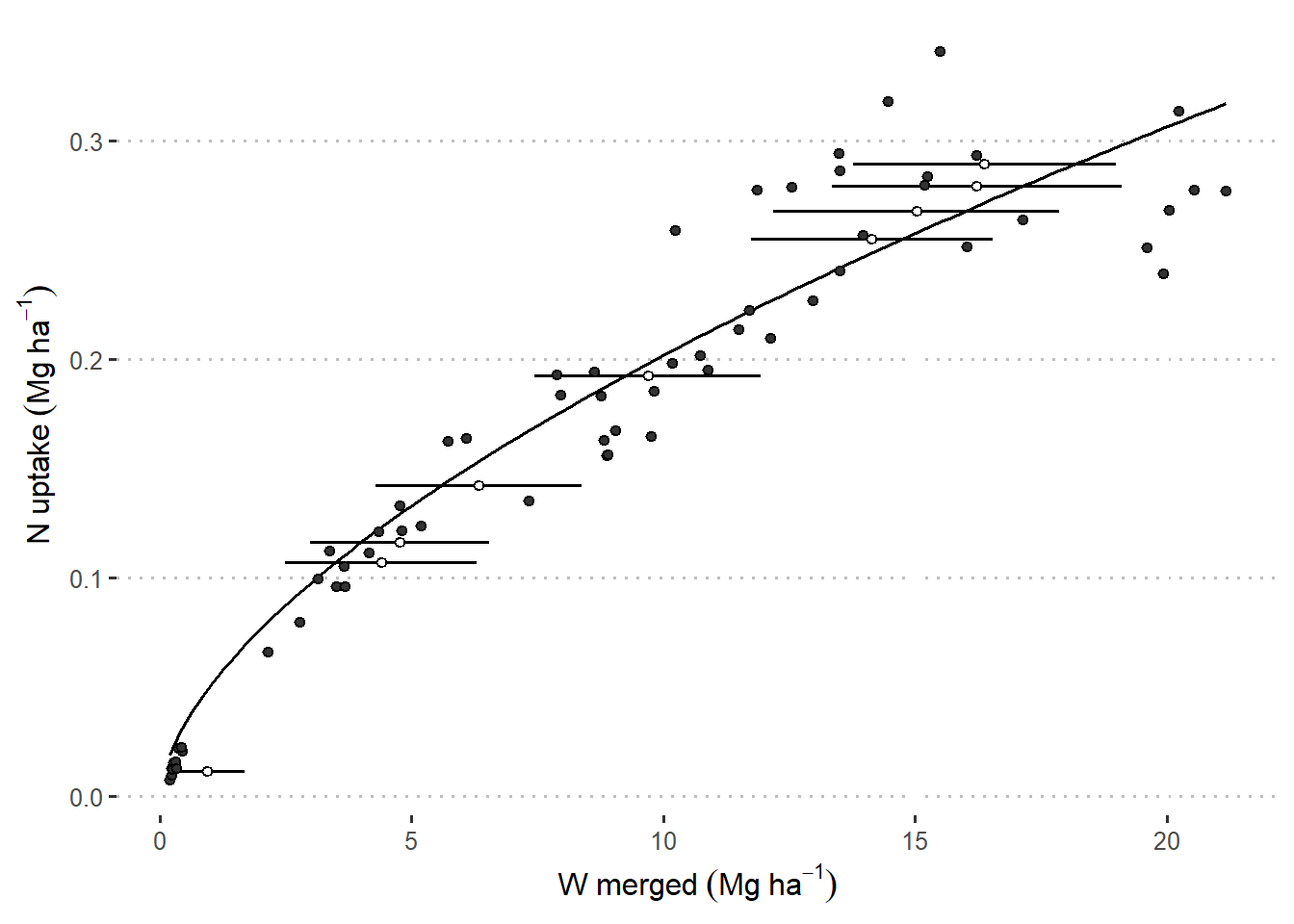

merged_data |>
  ggplot(aes(W_merged, y))+
  stat_function(fun = function(x){fitted$mean[1] * x ^ fitted$mean[2]})+
  geom_errorbarh(aes(xmin = W_merged - W_sd, xmax = W_merged + W_sd ),
                 height = 0)+
  geom_point(aes(fill = W_missing==0), shape = 21, show.legend = F)+
  scale_fill_manual(values = c("white", "grey20"))+
  theme_pubclean()+
  labs(
    x = expression(W~merged~(Mg~ha^{-1})),
    y = expression(N~uptake~(Mg~ha^{-1}))
  )

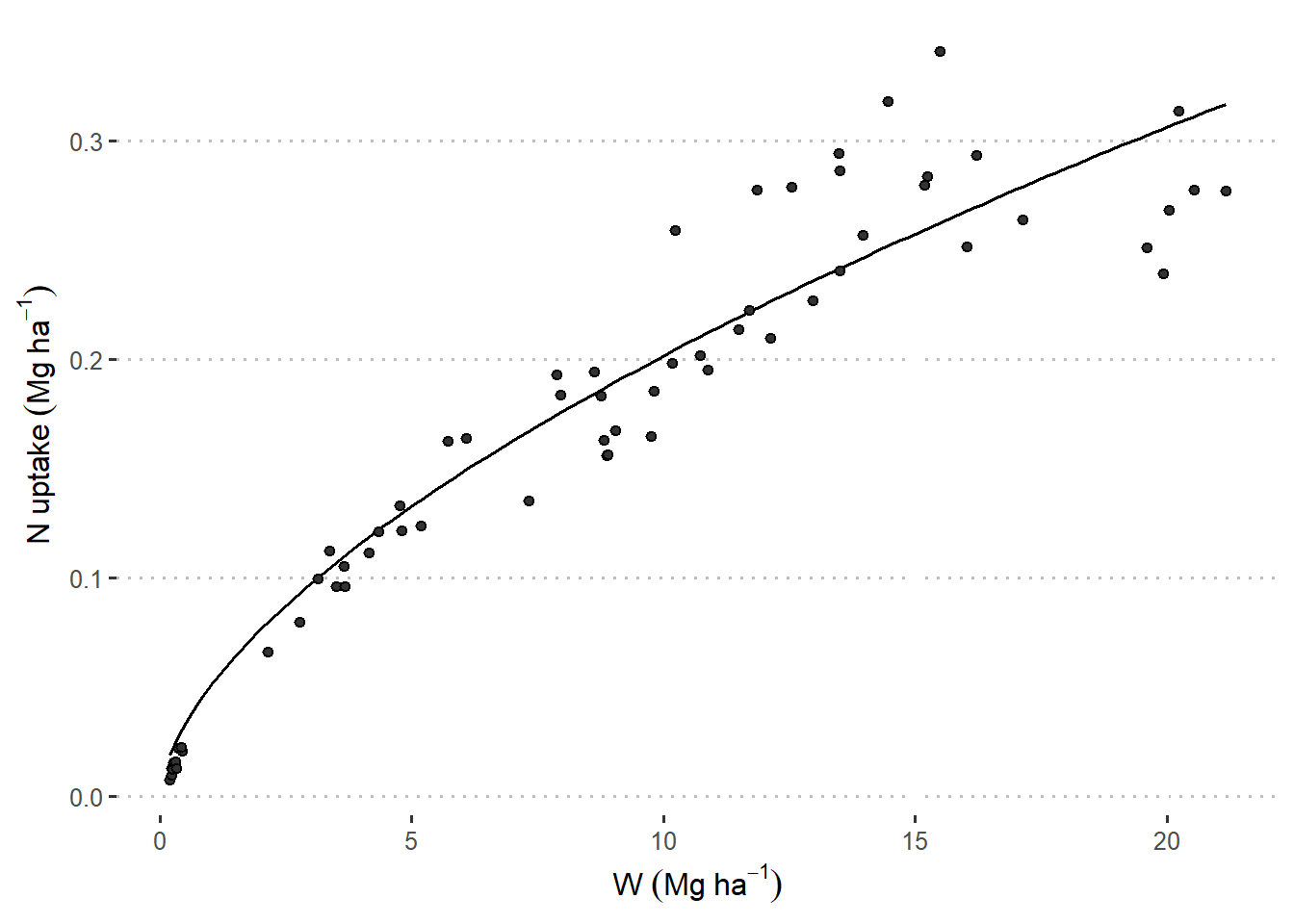

22.2.1.2 What if we didn’t have imputation and just dropped those rows?

small_model <- cmdstan_model("../scripts/small_model.stan")

small_model$print()

## data {
##   int<lower=0> N;
##   vector[N] W;
##   vector[N] y;
## }
##
## parameters {
##   real alpha;
##   real beta;
##   real<lower=0> sigma;
## }
##
## model {
##   alpha ~ normal(50, 10);
##   beta ~ normal(1, 2);
##   sigma ~ gamma(10,2);
##   for (i in 1:N){
##     y[i] ~ normal(alpha * W[i]^beta, sigma);
##     }
## }

df_small <- drop_na(df)

stan_data_small <- list(
  N = nrow(df_small),
  W = df_small$W_ton_ha,
  y = df_small$Nupt_kg_ha)

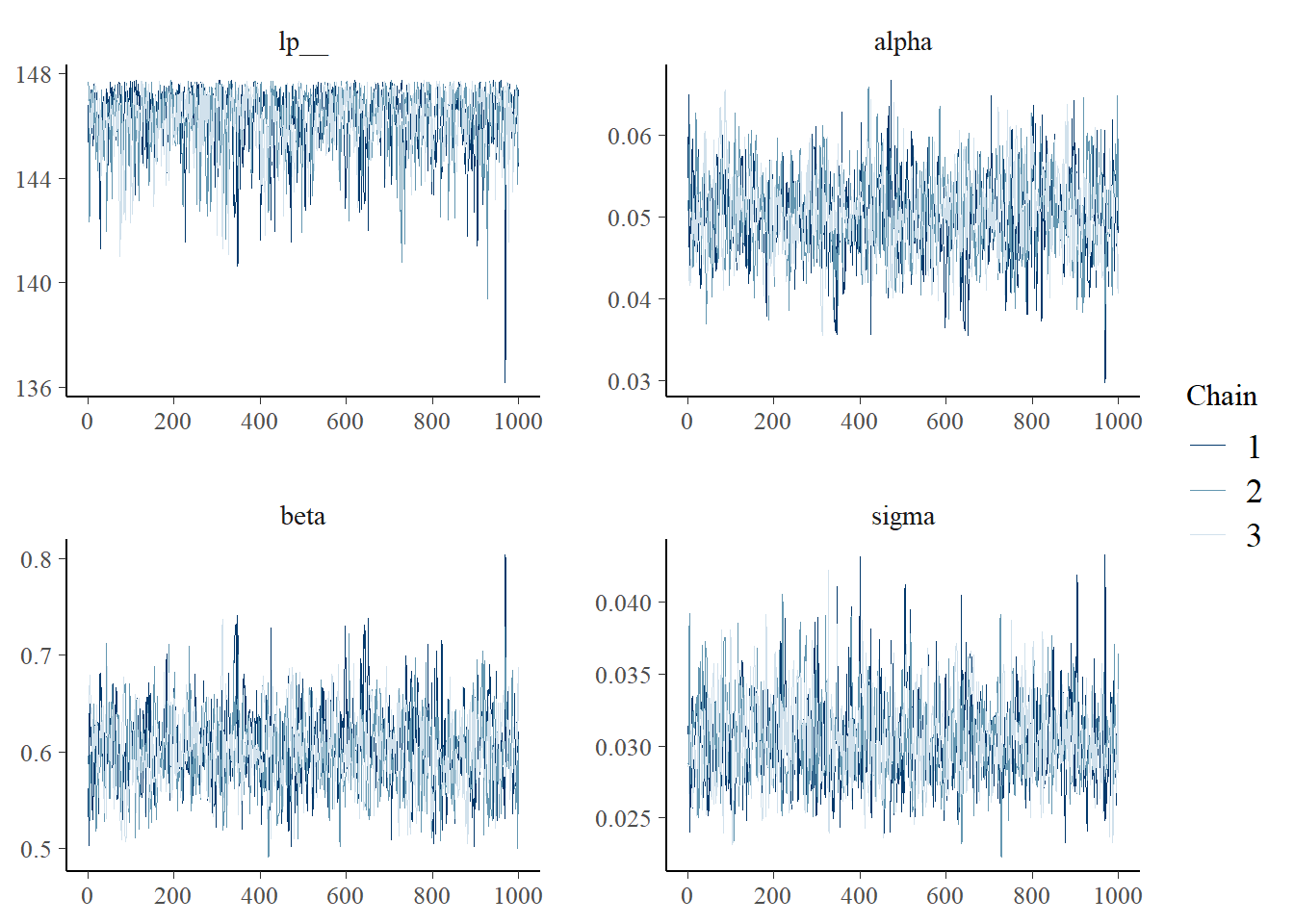

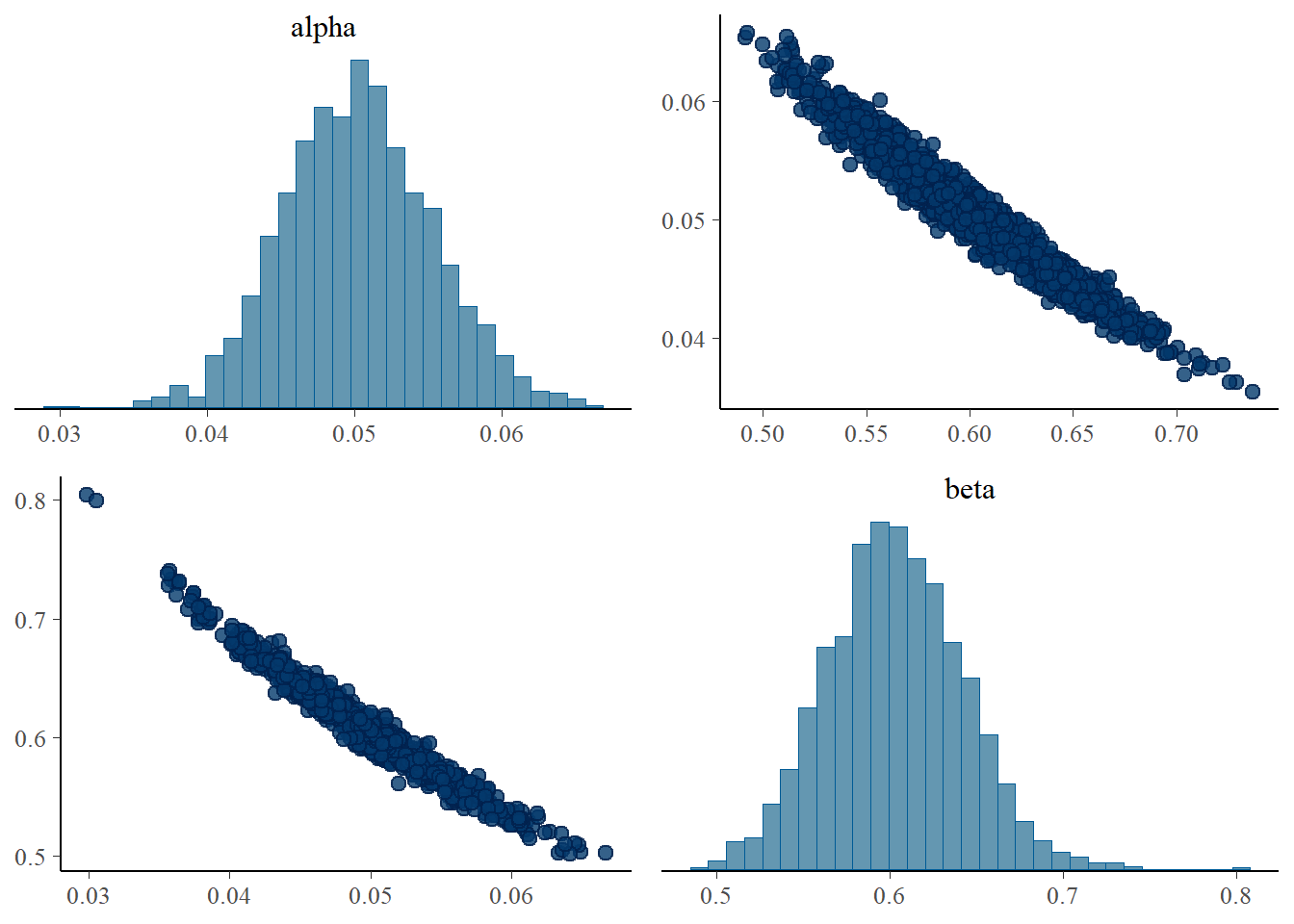

samples_small <- small_model$sample(
  data = stan_data_small,
  seed = 33,
  chains = 3,
  cores = 3,
  iter_warmup = 1500,
  iter_sampling = 1000
)

## Running MCMC with 3 parallel chains...
##
## Chain 1 Iteration:    1 / 2500 [  0%]  (Warmup)
## Chain 1 Iteration:  100 / 2500 [  4%]  (Warmup)
## Chain 1 Iteration:  200 / 2500 [  8%]  (Warmup)

## Chain 2 Iteration:    1 / 2500 [  0%]  (Warmup)
## Chain 2 Iteration:  100 / 2500 [  4%]  (Warmup)

## Chain 3 Iteration:    1 / 2500 [  0%]  (Warmup)
## Chain 3 Iteration:  100 / 2500 [  4%]  (Warmup)

## Chain 1 Iteration:  300 / 2500 [ 12%]  (Warmup)
## Chain 1 Iteration:  400 / 2500 [ 16%]  (Warmup)
## Chain 1 Iteration:  500 / 2500 [ 20%]  (Warmup)
## Chain 1 Iteration:  600 / 2500 [ 24%]  (Warmup)
## Chain 1 Iteration:  700 / 2500 [ 28%]  (Warmup)
## Chain 1 Iteration:  800 / 2500 [ 32%]  (Warmup)
## Chain 1 Iteration:  900 / 2500 [ 36%]  (Warmup)
## Chain 1 Iteration: 1000 / 2500 [ 40%]  (Warmup)
## Chain 1 Iteration: 1100 / 2500 [ 44%]  (Warmup)
## Chain 1 Iteration: 1200 / 2500 [ 48%]  (Warmup)
## Chain 1 Iteration: 1300 / 2500 [ 52%]  (Warmup)
## Chain 1 Iteration: 1400 / 2500 [ 56%]  (Warmup)
## Chain 1 Iteration: 1500 / 2500 [ 60%]  (Warmup)
## Chain 1 Iteration: 1501 / 2500 [ 60%]  (Sampling)
## Chain 1 Iteration: 1600 / 2500 [ 64%]  (Sampling)
## Chain 1 Iteration: 1700 / 2500 [ 68%]  (Sampling)
## Chain 1 Iteration: 1800 / 2500 [ 72%]  (Sampling)
## Chain 1 Iteration: 1900 / 2500 [ 76%]  (Sampling)
## Chain 2 Iteration:  200 / 2500 [  8%]  (Warmup)
## Chain 2 Iteration:  300 / 2500 [ 12%]  (Warmup)
## Chain 2 Iteration:  400 / 2500 [ 16%]  (Warmup)
## Chain 2 Iteration:  500 / 2500 [ 20%]  (Warmup)
## Chain 2 Iteration:  600 / 2500 [ 24%]  (Warmup)
## Chain 2 Iteration:  700 / 2500 [ 28%]  (Warmup)
## Chain 2 Iteration:  800 / 2500 [ 32%]  (Warmup)
## Chain 2 Iteration:  900 / 2500 [ 36%]  (Warmup)
## Chain 2 Iteration: 1000 / 2500 [ 40%]  (Warmup)
## Chain 2 Iteration: 1100 / 2500 [ 44%]  (Warmup)
## Chain 2 Iteration: 1200 / 2500 [ 48%]  (Warmup)
## Chain 2 Iteration: 1300 / 2500 [ 52%]  (Warmup)
## Chain 2 Iteration: 1400 / 2500 [ 56%]  (Warmup)
## Chain 2 Iteration: 1500 / 2500 [ 60%]  (Warmup)
## Chain 2 Iteration: 1501 / 2500 [ 60%]  (Sampling)
## Chain 2 Iteration: 1600 / 2500 [ 64%]  (Sampling)
## Chain 2 Iteration: 1700 / 2500 [ 68%]  (Sampling)
## Chain 2 Iteration: 1800 / 2500 [ 72%]  (Sampling)
## Chain 3 Iteration:  200 / 2500 [  8%]  (Warmup)
## Chain 3 Iteration:  300 / 2500 [ 12%]  (Warmup)
## Chain 3 Iteration:  400 / 2500 [ 16%]  (Warmup)
## Chain 3 Iteration:  500 / 2500 [ 20%]  (Warmup)
## Chain 3 Iteration:  600 / 2500 [ 24%]  (Warmup)
## Chain 3 Iteration:  700 / 2500 [ 28%]  (Warmup)
## Chain 3 Iteration:  800 / 2500 [ 32%]  (Warmup)
## Chain 3 Iteration:  900 / 2500 [ 36%]  (Warmup)
## Chain 3 Iteration: 1000 / 2500 [ 40%]  (Warmup)
## Chain 3 Iteration: 1100 / 2500 [ 44%]  (Warmup)
## Chain 3 Iteration: 1200 / 2500 [ 48%]  (Warmup)
## Chain 3 Iteration: 1300 / 2500 [ 52%]  (Warmup)
## Chain 3 Iteration: 1400 / 2500 [ 56%]  (Warmup)
## Chain 3 Iteration: 1500 / 2500 [ 60%]  (Warmup)
## Chain 3 Iteration: 1501 / 2500 [ 60%]  (Sampling)
## Chain 3 Iteration: 1600 / 2500 [ 64%]  (Sampling)
## Chain 3 Iteration: 1700 / 2500 [ 68%]  (Sampling)
## Chain 3 Iteration: 1800 / 2500 [ 72%]  (Sampling)
## Chain 3 Iteration: 1900 / 2500 [ 76%]  (Sampling)
## Chain 1 Iteration: 2000 / 2500 [ 80%]  (Sampling)
## Chain 1 Iteration: 2100 / 2500 [ 84%]  (Sampling)
## Chain 1 Iteration: 2200 / 2500 [ 88%]  (Sampling)
## Chain 1 Iteration: 2300 / 2500 [ 92%]  (Sampling)
## Chain 1 Iteration: 2400 / 2500 [ 96%]  (Sampling)
## Chain 1 Iteration: 2500 / 2500 [100%]  (Sampling)
## Chain 2 Iteration: 1900 / 2500 [ 76%]  (Sampling)
## Chain 2 Iteration: 2000 / 2500 [ 80%]  (Sampling)
## Chain 2 Iteration: 2100 / 2500 [ 84%]  (Sampling)
## Chain 2 Iteration: 2200 / 2500 [ 88%]  (Sampling)
## Chain 2 Iteration: 2300 / 2500 [ 92%]  (Sampling)
## Chain 2 Iteration: 2400 / 2500 [ 96%]  (Sampling)
## Chain 2 Iteration: 2500 / 2500 [100%]  (Sampling)
## Chain 3 Iteration: 2000 / 2500 [ 80%]  (Sampling)
## Chain 3 Iteration: 2100 / 2500 [ 84%]  (Sampling)
## Chain 3 Iteration: 2200 / 2500 [ 88%]  (Sampling)
## Chain 3 Iteration: 2300 / 2500 [ 92%]  (Sampling)
## Chain 3 Iteration: 2400 / 2500 [ 96%]  (Sampling)
## Chain 3 Iteration: 2500 / 2500 [100%]  (Sampling)
## Chain 1 finished in 0.3 seconds.
## Chain 2 finished in 0.3 seconds.
## Chain 3 finished in 0.3 seconds.
##
## All 3 chains finished successfully.
## Mean chain execution time: 0.3 seconds.
## Total execution time: 0.5 seconds.

mcmc_trace(samples_small$draws())

mcmc_pairs(samples_small$draws(c("alpha", "beta")))

fitted_small <- samples_small$summary(c("alpha", "beta"))

df_small |>
  ggplot(aes(W_ton_ha, Nupt_kg_ha))+
  stat_function(fun = function(x){fitted_small$mean[1] * x ^ fitted_small$mean[2]})+
  geom_point(aes(), shape = 21, fill = "grey20")+
  theme_pubclean()+
  labs(
    x = expression(W~(Mg~ha^{-1})),
    y = expression(N~uptake~(Mg~ha^{-1}))
  )

22.2.2 Data missing in all observations & latent variables

Class discussion: the problem of yield gaps and yield potential

22.3 References

• Chapter 14 in Statistical Rethinking (McElreath, 2015)
• Multiple Imputation for Incomplete Data in Epidemiologic Studies (Harel et al., 2017)
